Servicio Portacontenedor

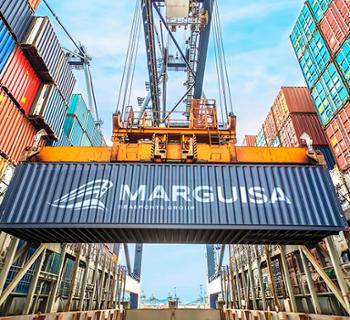

Carga seca
Contamos con un amplio parque propio de contenedores para satisfacer las necesidades de nuestros clientes.

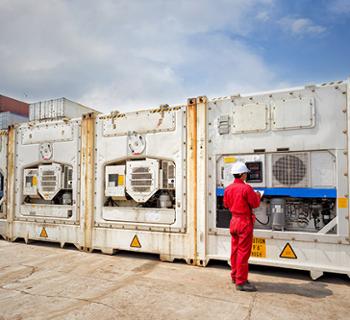

Carga refrigerada
Disponemos de un moderno stock de contenedores frigoríficos para atender cargas congeladas, refrigeradas o con atmosfera controlada.

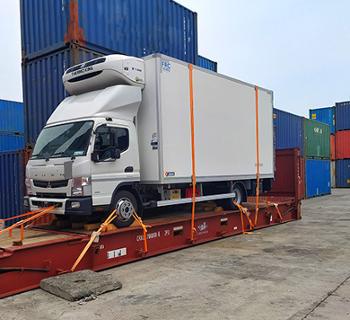

Equipos especiales y OOG
Contenedores aptos para carga sobredimensionada garantizando seguridad en el transporte y versatilidad.

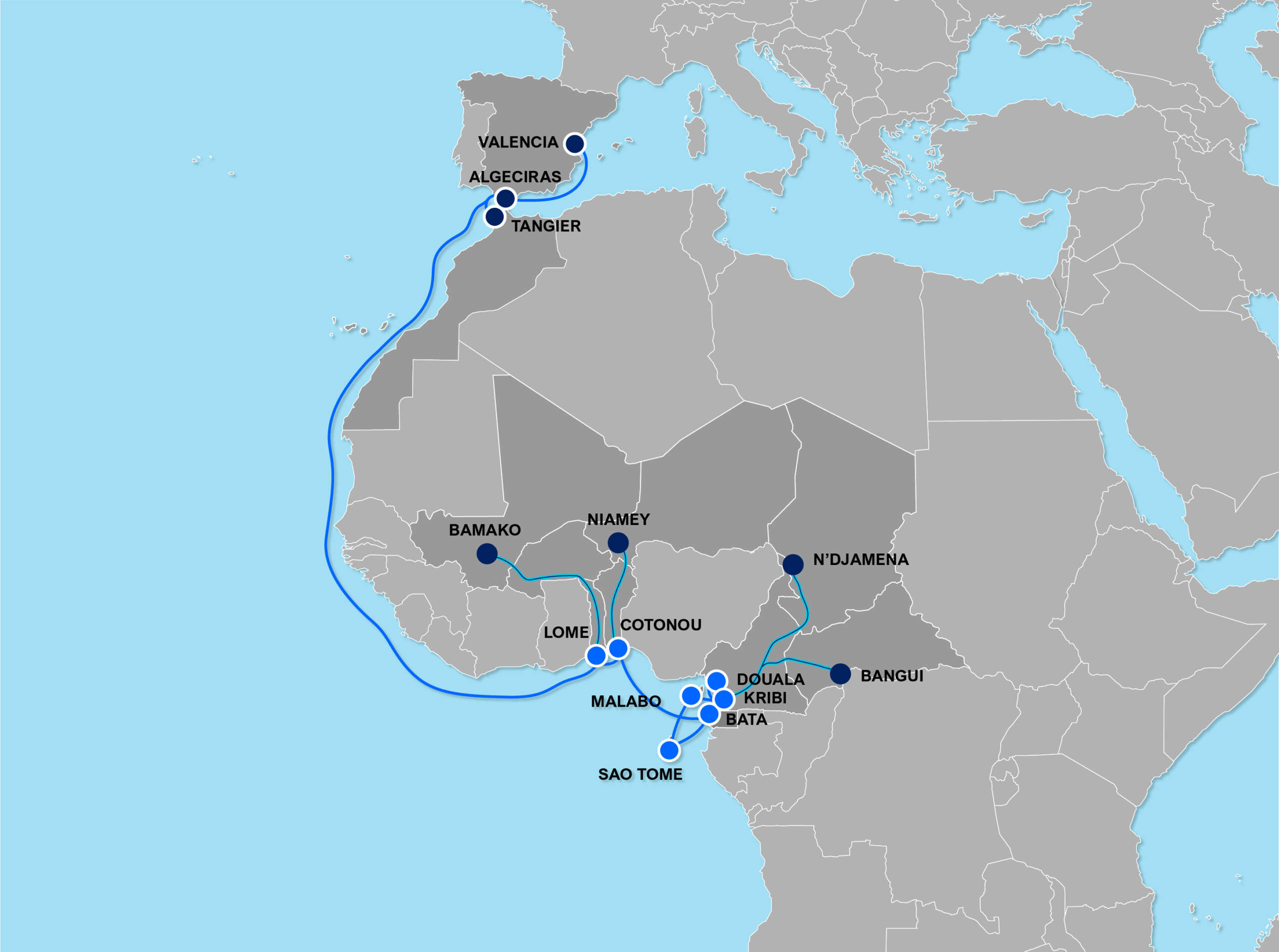

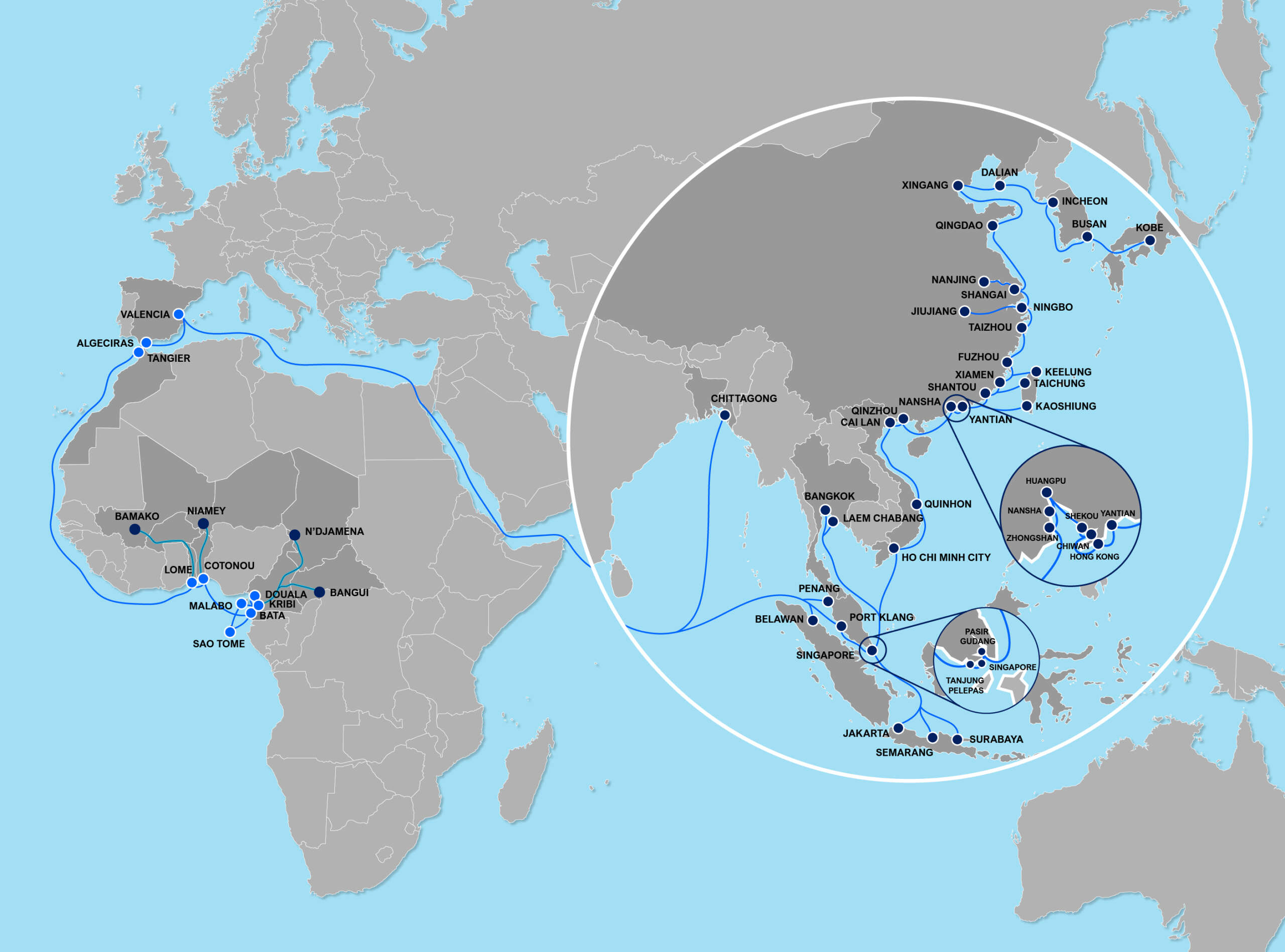

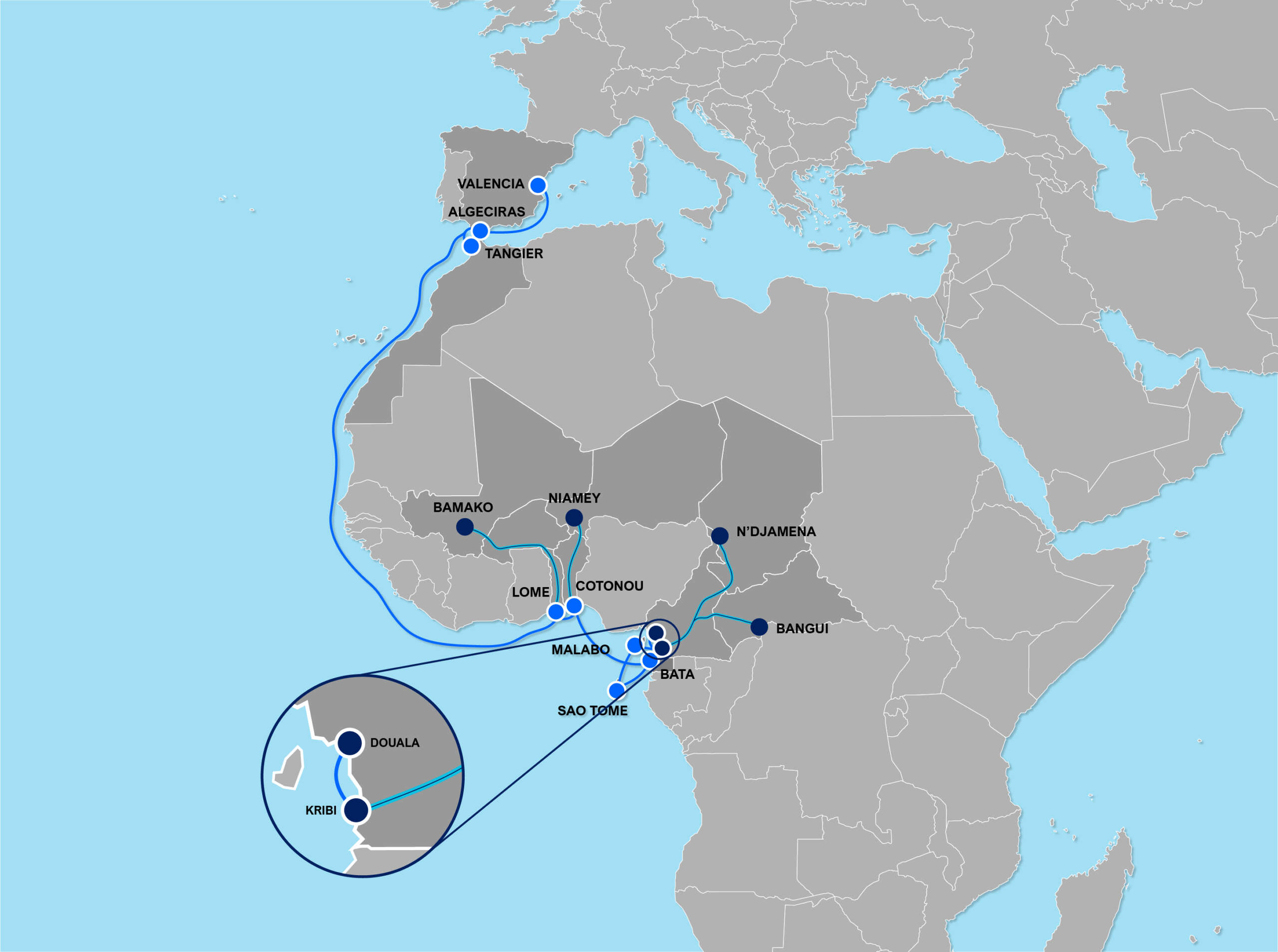

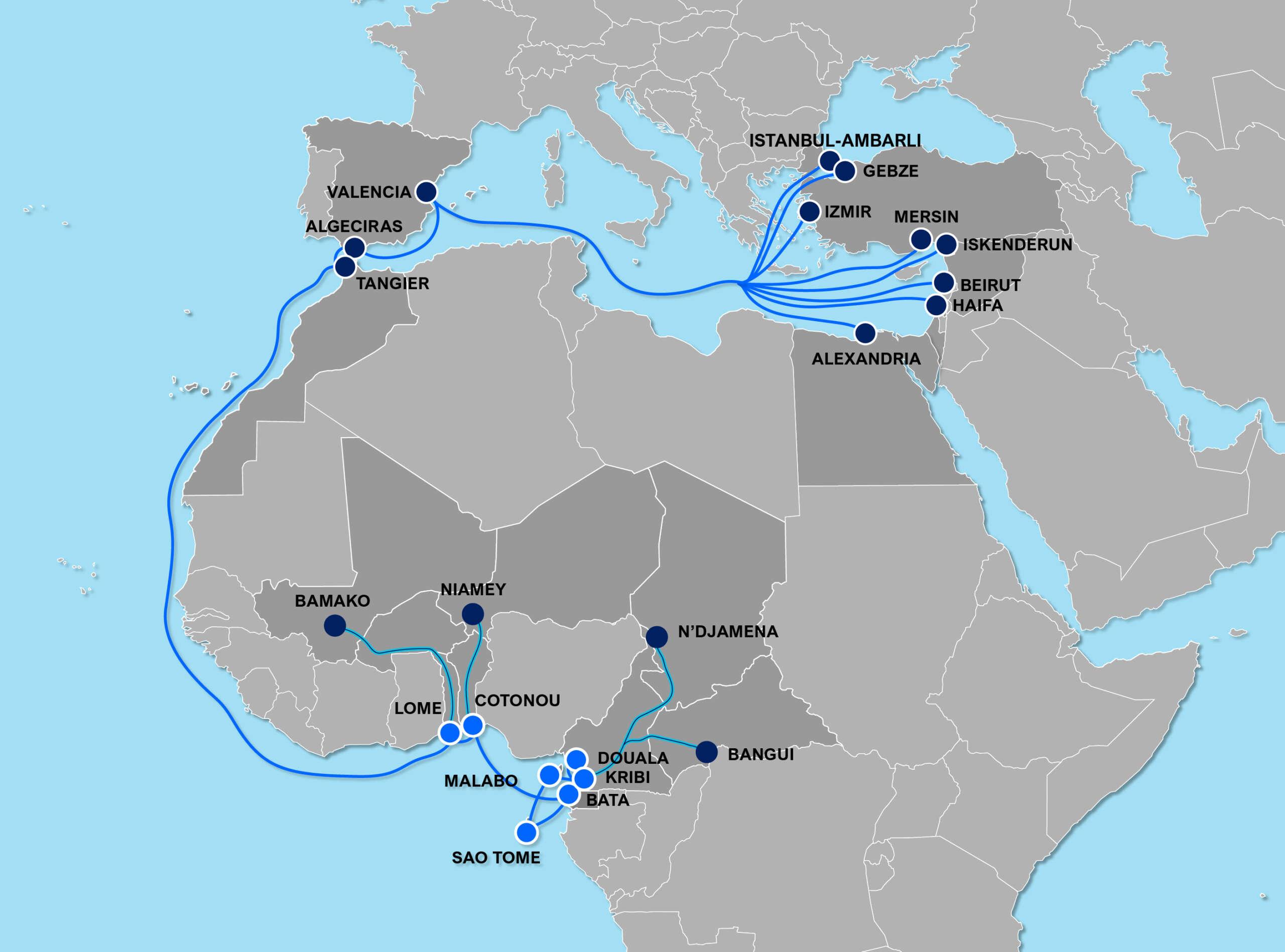

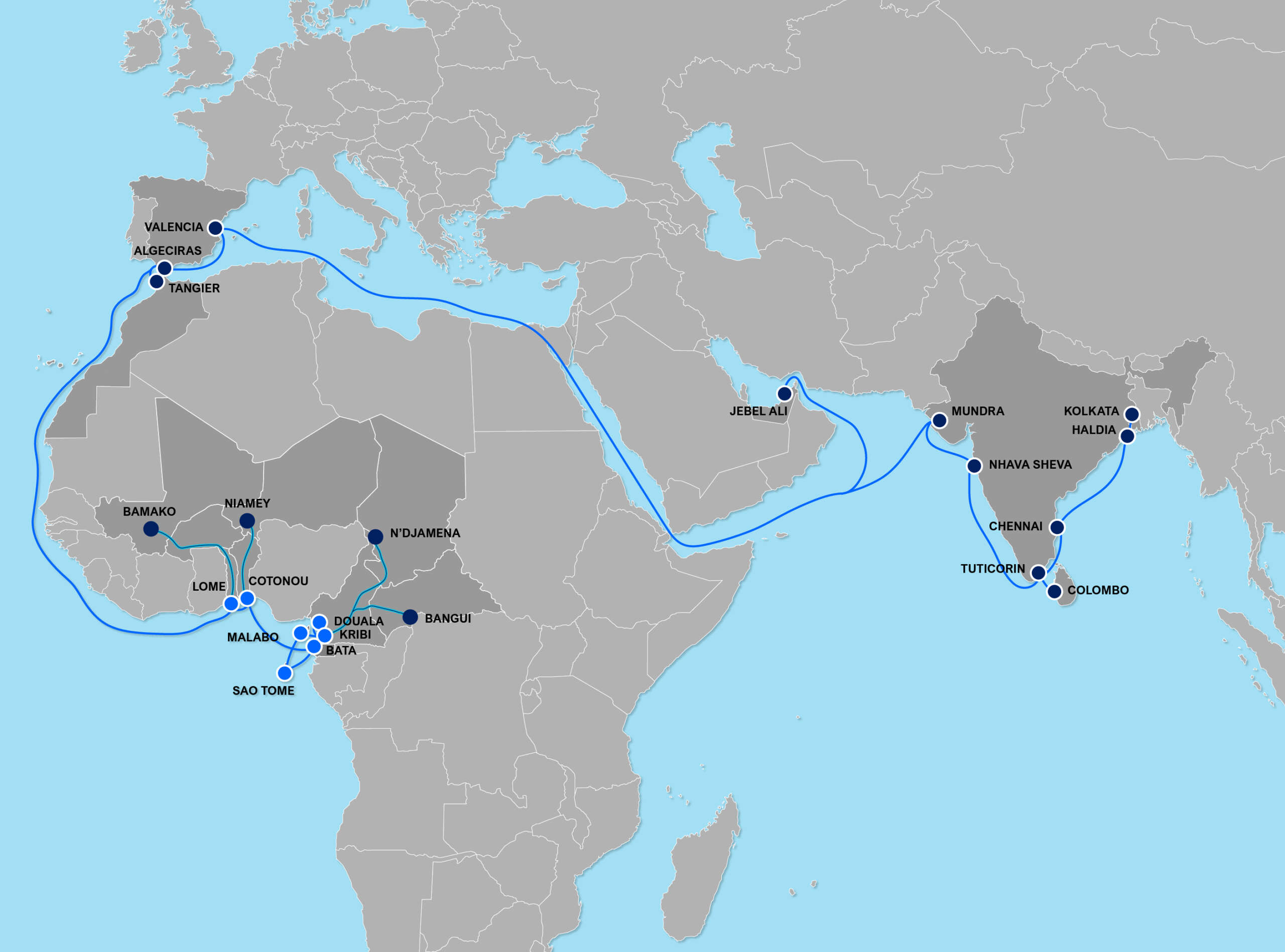

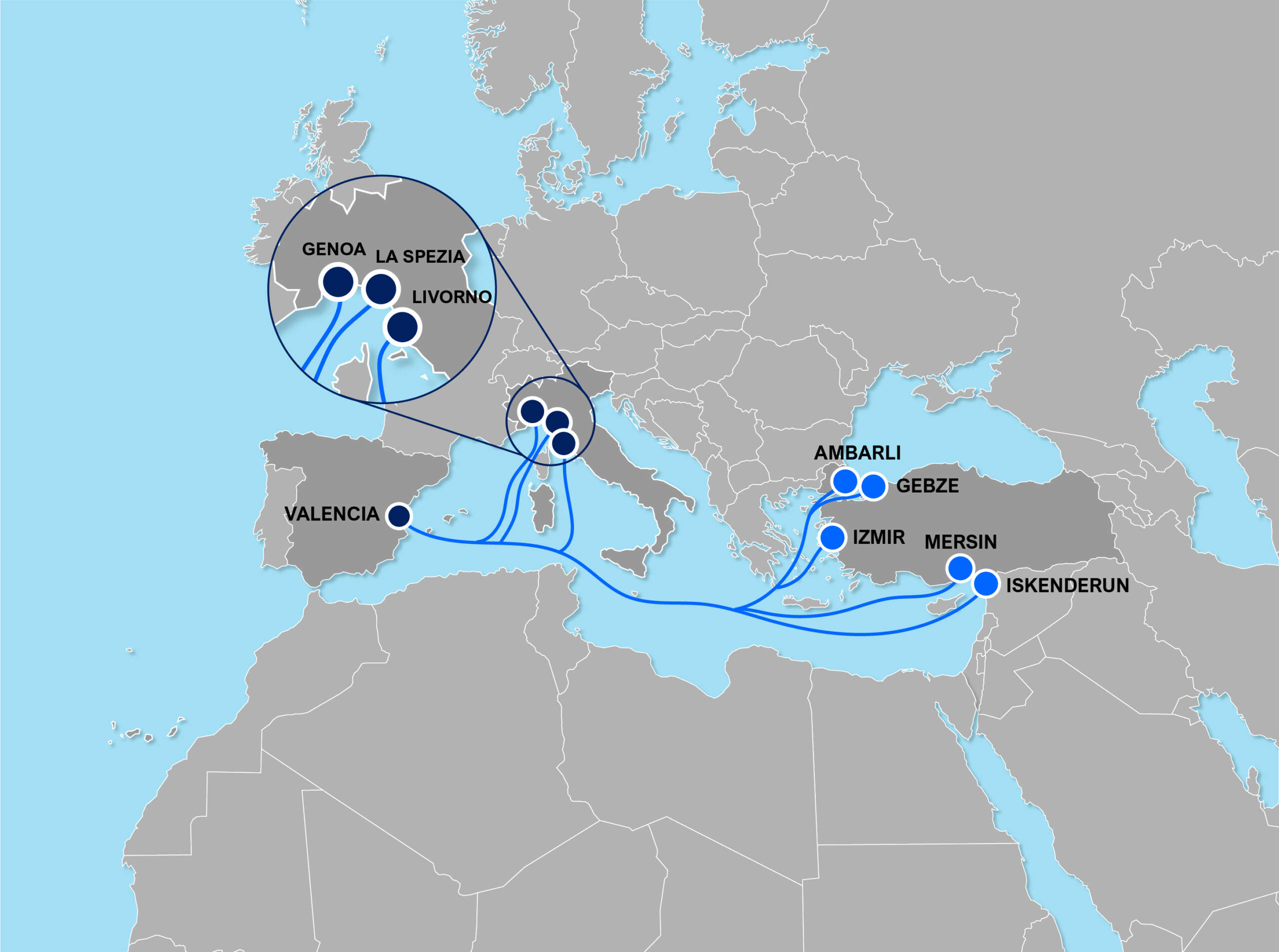

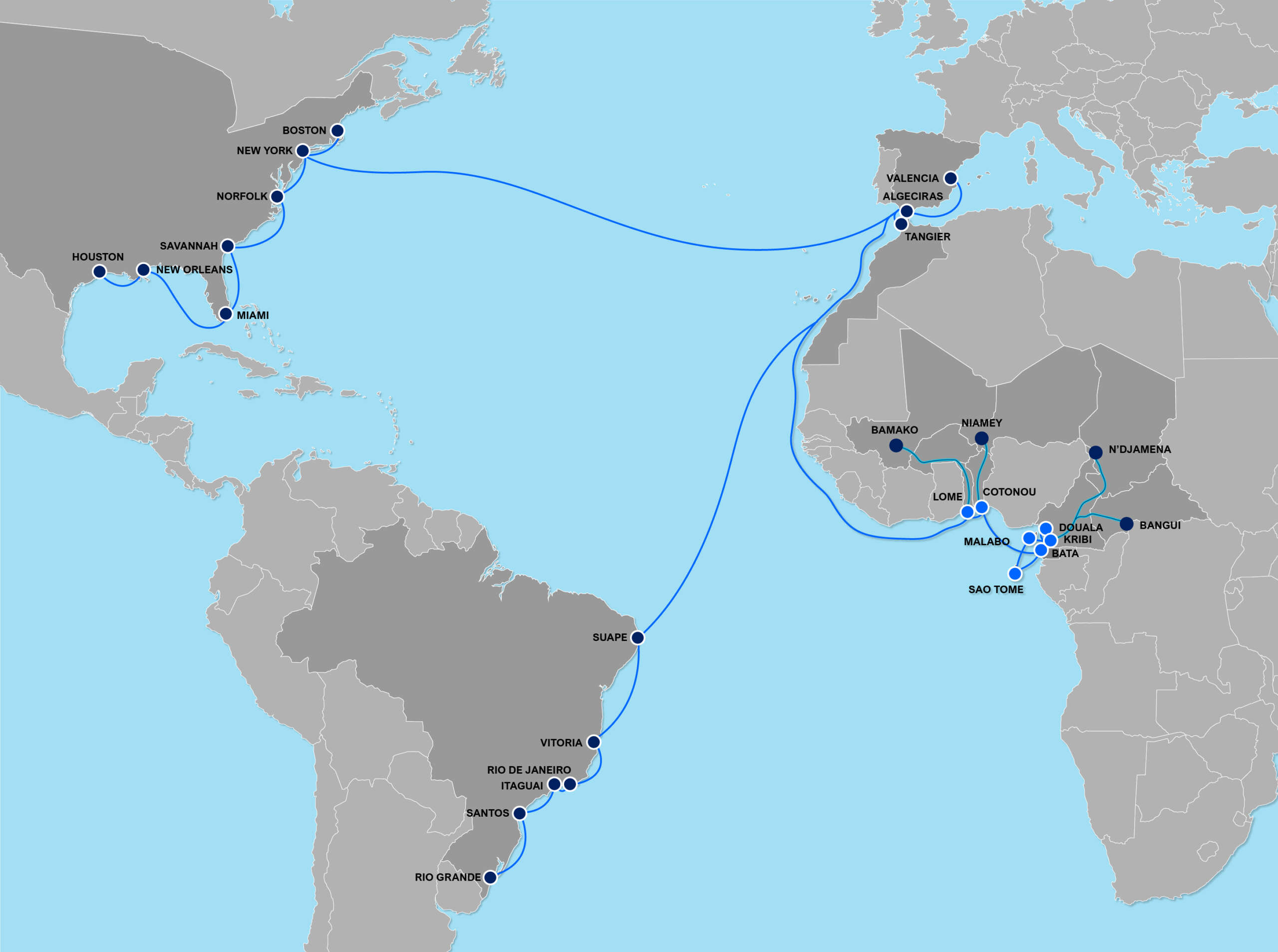

Schedules
20´Dry Cargo
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 6,058 | 2,438 | 2,591 | 5,898 | 2,352 | 2,393 | 2,340 | 2,280 | 33.2 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 30,480 | 2,100 | 28,380 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
40’ Dry & High Cube
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 12,192 | 2,438 | 2,896 | 12,032 | 2,352 | 2,698 | 2,340 | 2,585 | 76.4 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 32,500 | 3,830 | 28,670 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
40’ Dry Van
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 12,192 | 2,438 | 2,591 | 12,032 | 2,352 | 2,393 | 2,340 | 2,280 | 67.7 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 32,500 | 3,540 | 28,960 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
20´Reefer
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 6,058 | 2,438 | 2,591 | 5,454 | 2,284 | 2,263 | 2,290 | 2,291 | 28.2 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 30,480 | 2,880 | 27,600 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
40´High Reefer
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 12,192 | 2,438 | 2,896 | 11,588 | 2,288 | 2,544 | 2,290 | 2,569 | 67.5 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 35,000 | 4,660 | 30,340 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
20´Flat Rack
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 6,058 | 2,438 | 2,591 | 5,632 | 2,226 | --- | --- | --- | --- |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 34.000 | 2.800 | 31.200 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
40´Flat Rack
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 12,192 | 2,438 | 2,591 | 11,652 | 2,220 (between end pannels) | --- | --- | --- | --- |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 52,500 | 5,100 | 47,400 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
20´Open Top
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 6,058 | 2,438 | 2,591 | 5,898 | 2,352 | 2,348 | 2,340 | 2,280 | 32.5 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 30,480 | 2,150 | 28,330 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
40´Open Top
DIMENSIONS (mm)
| External Length | External Width | External Height | Internal Length | Internal Width | Internal Height | Door Opening Width | Door Opening Height | Cubic Capacity (m3) |
|---|---|---|---|---|---|---|---|---|
| 12,192 | 2,438 | 2,591 | 12,032 | 2,352 | 2,348 | 2,340 | 2,280 | 66.4 |
WEIGHTS (kgs)
| Max Gross Weight | Tare Weight | Payload Weight |
|---|---|---|
| 32,500 | 3,650 | 28,850 |
*Above values are for guidance purposes. Real specifications must be checked on the CSC plate of the container. Clients shall be fully liable for any damages and inconvenience caused in case of overloading that fails to comply with the Maximum Gross Mass showed on CSC plate.
Equipment can be supplied with Carrier, Daikin and Thermoking machinery.
